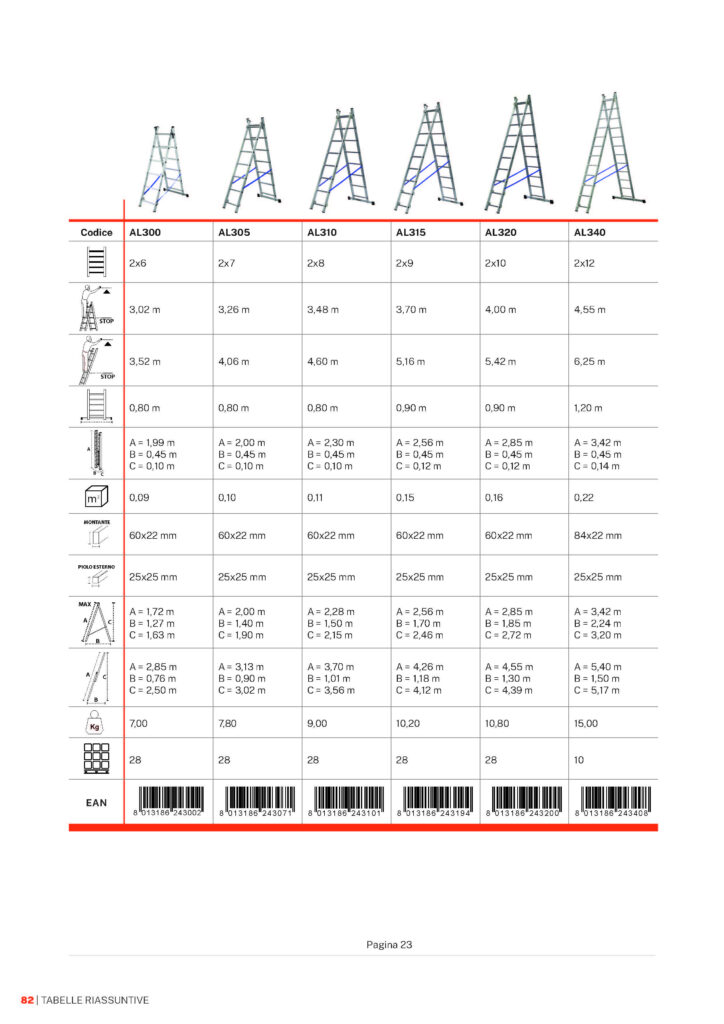

| CODICE | CODE | CODE | PIOLI | RUNGS | ÉCHELONS | ALTEZZA DI LAVORO MAX PORTAFOGLIO m | MAX WORKING HEIGHT A-FRAME POSITION m | HAUTEUR MAX DE TRAVAIL EN POSITION DOUBLE m | ALTEZZA DI LAVORO MAX ESTESA m | MAX WORKING HEIGHT IN EXTENDED POSITION m | HAUTEUR MAX DE TRAVAIL EN POSITION D'APPUI m | PRODOTTO CHIUSO m | CLOSED PRODUCT m | PRODUIT PLIÉ m |
|---|---|---|---|---|

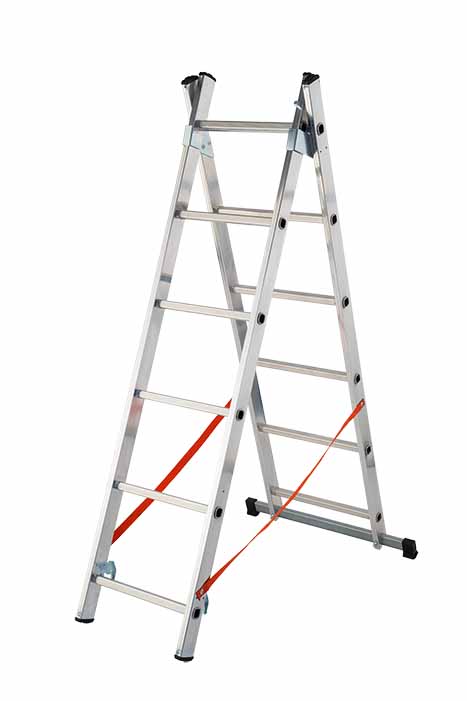

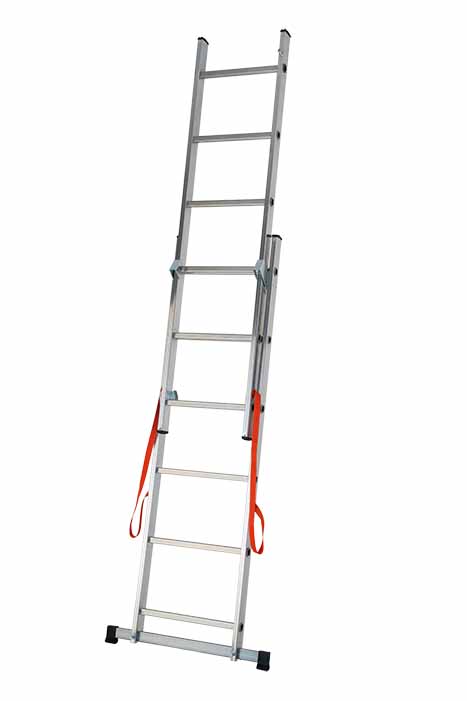

| AL300 | 2x6 | 3,02 | 3,57 | 1,70x0,47x0,15 |

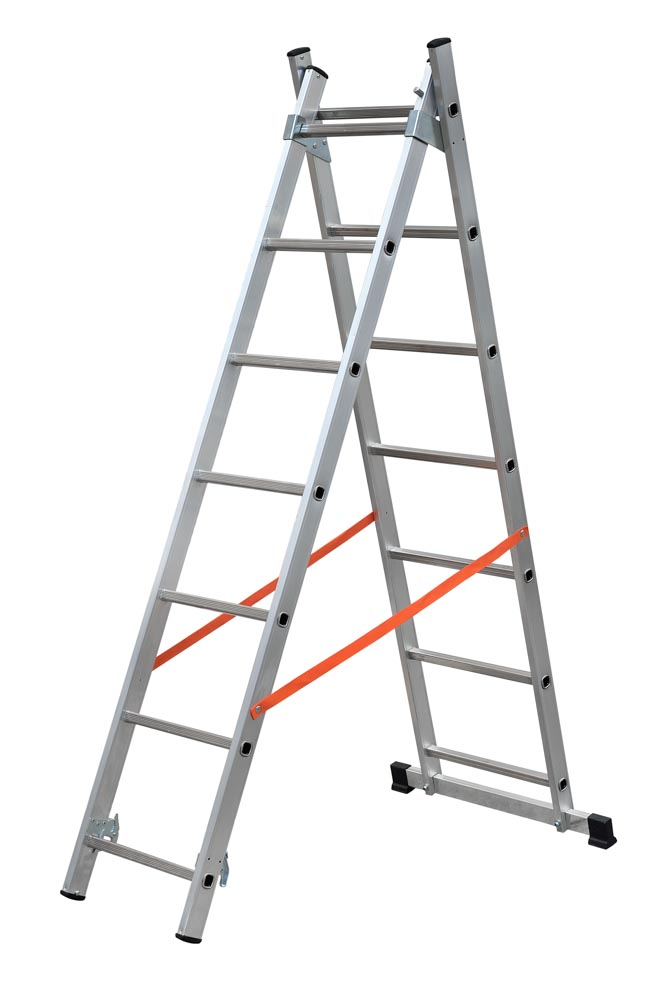

| AL305 | 2x7 | 3,28 | 4,13 | 1,99x0,47x0,15 |

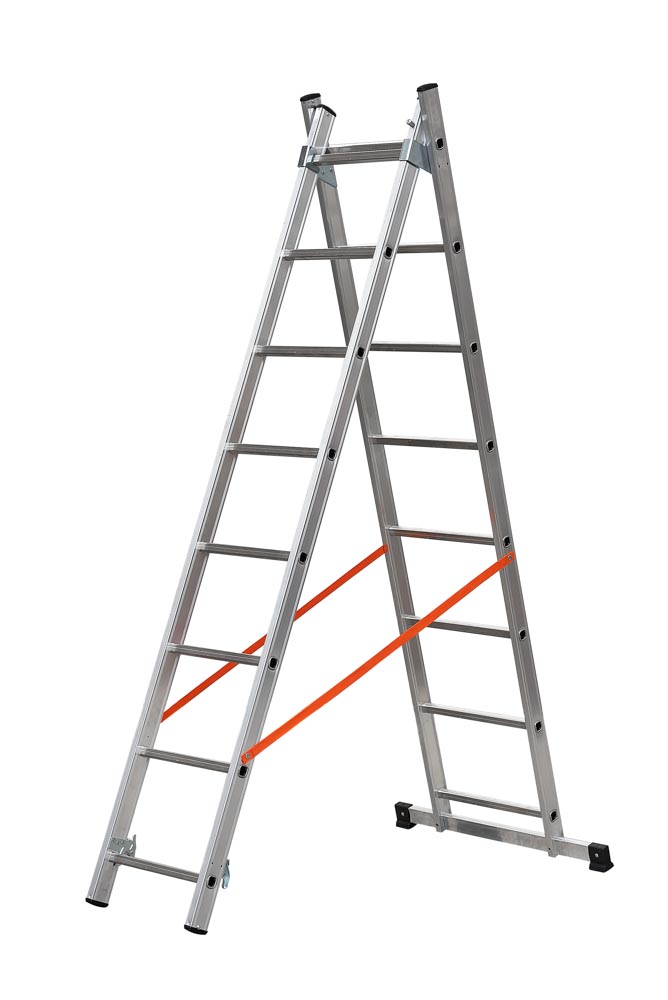

| AL310 | 2x8 | 3,56 | 4,70 | 2,27x0,47x0,15 |

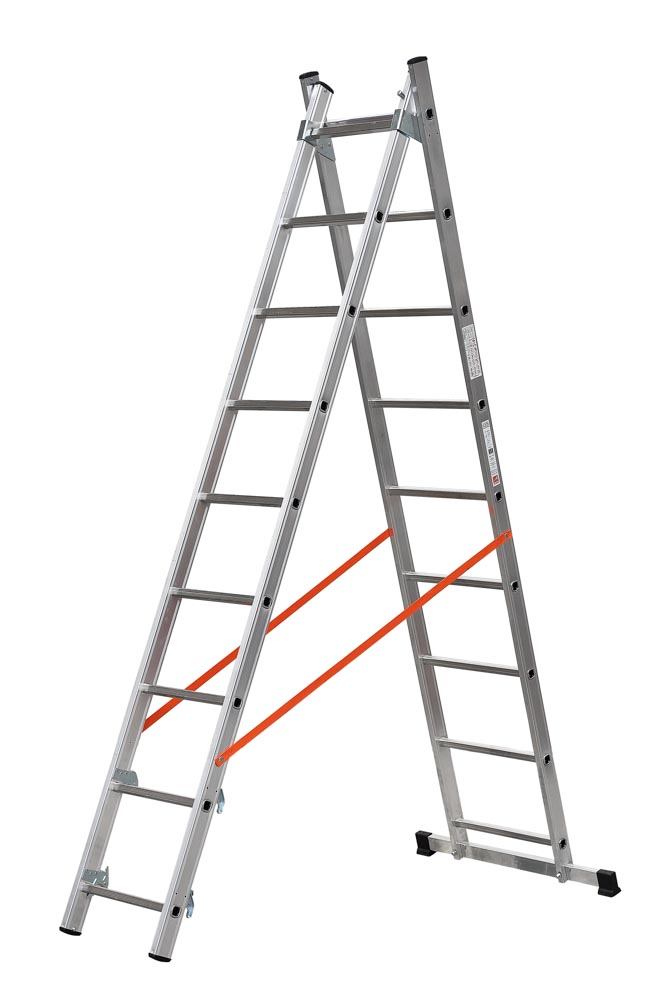

| AL315 | 2x9 | 3,84 | 5,27 | 2,55x0,47x0,15 |
| AL320 | 2x10 | 4,13 | 5,54 | 2,84x0,47x0,15 |

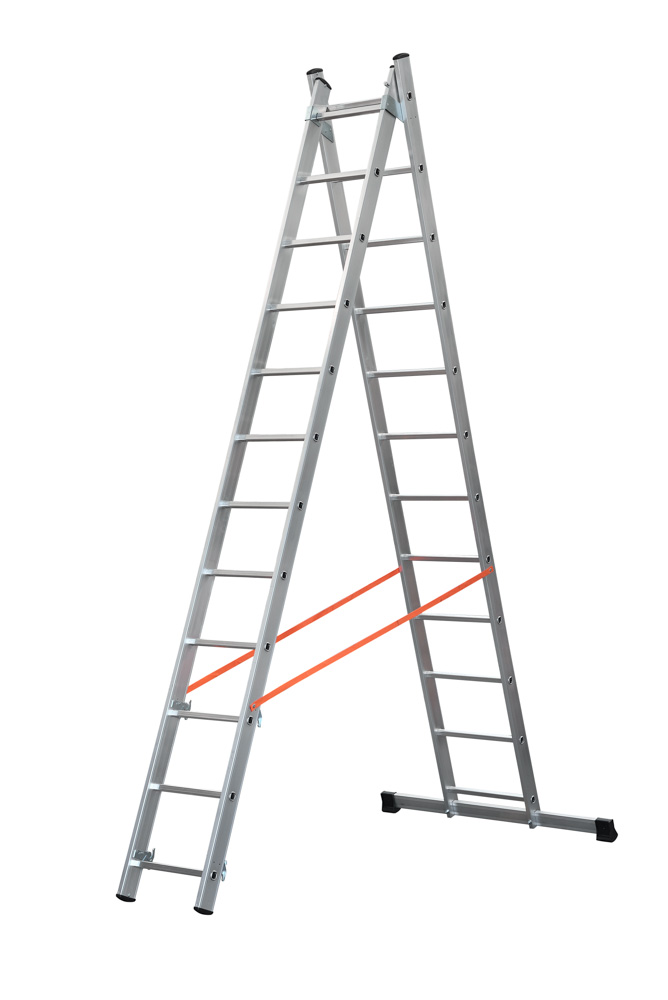

| AL340 | 2x12 | 4,70 | 6,40 | 3,42x0,47x0,20 |

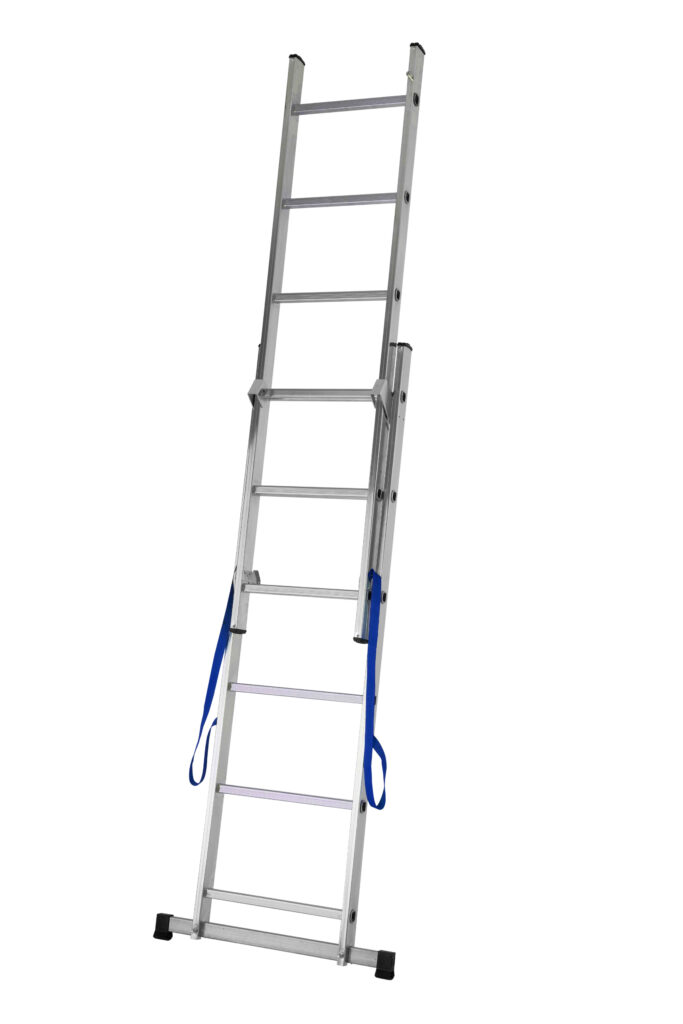

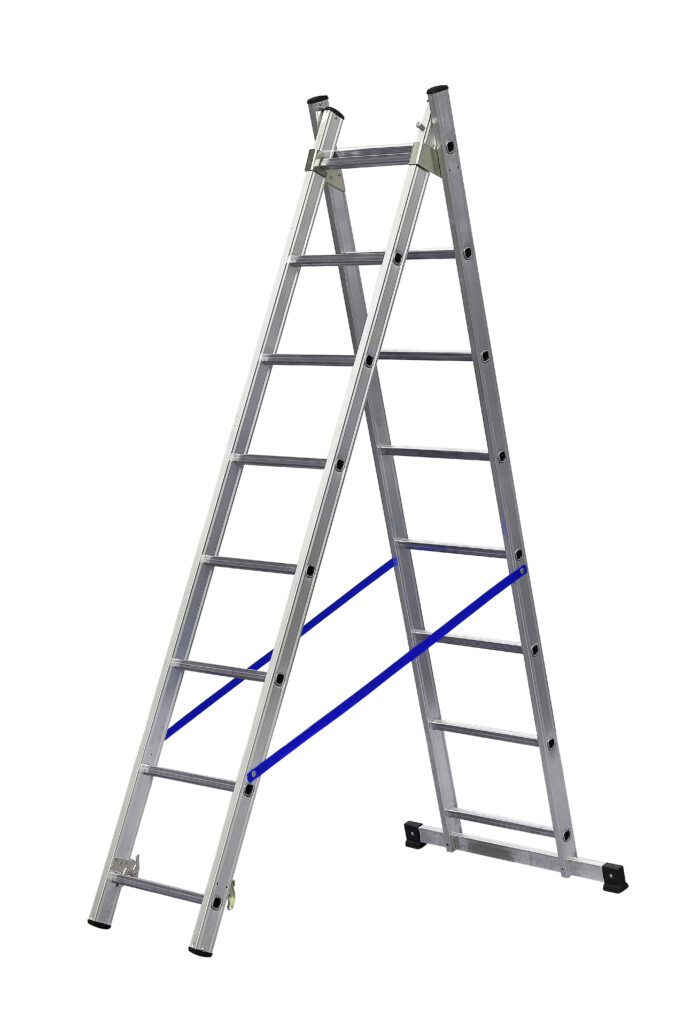

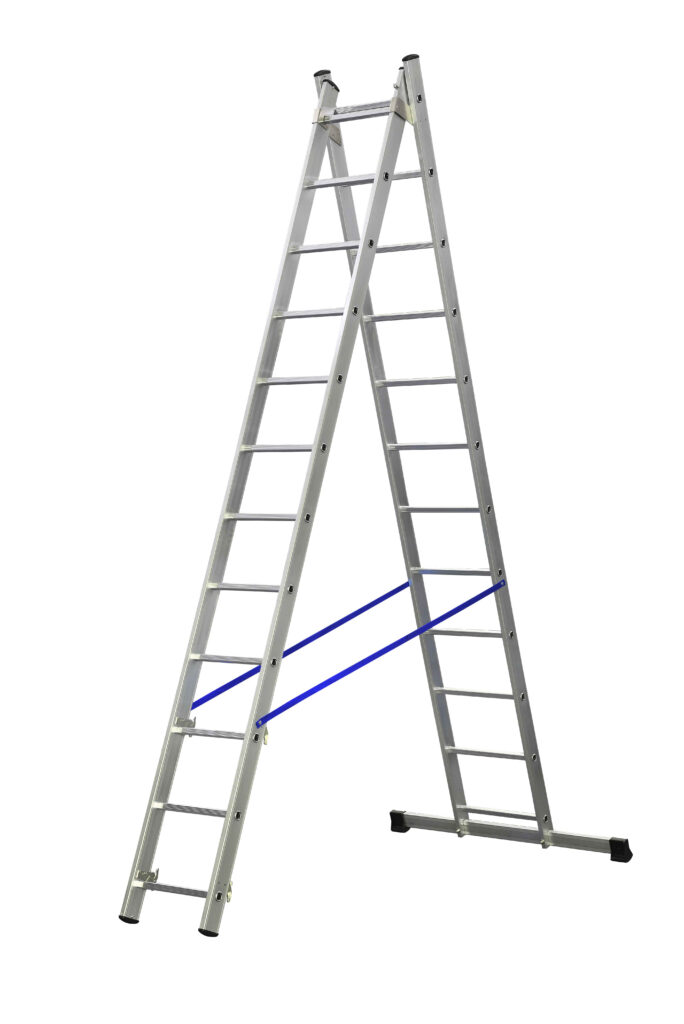

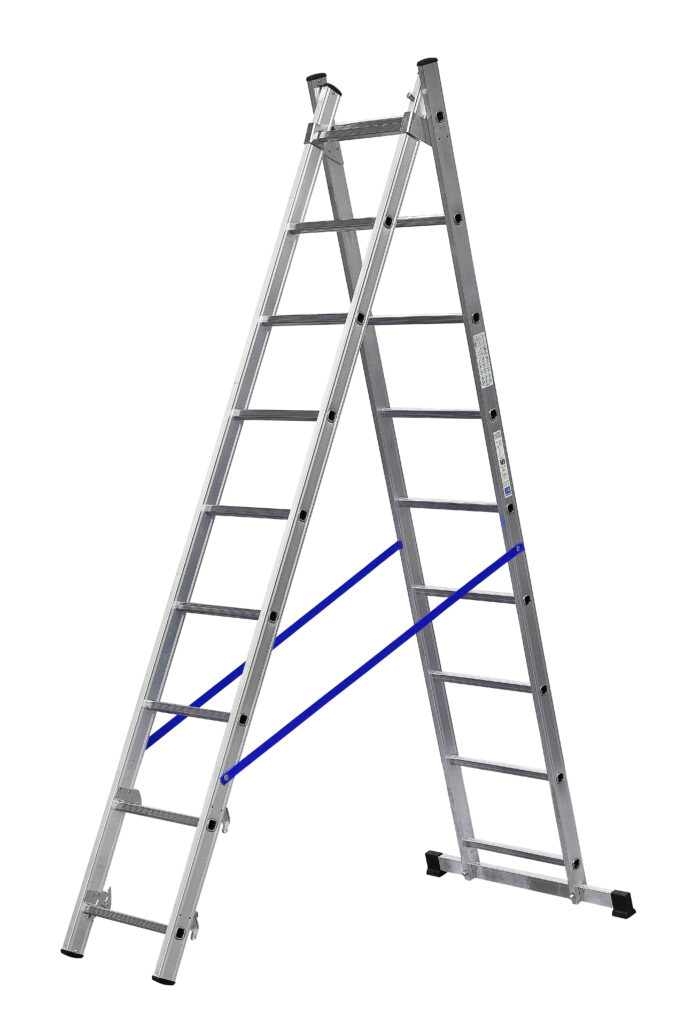

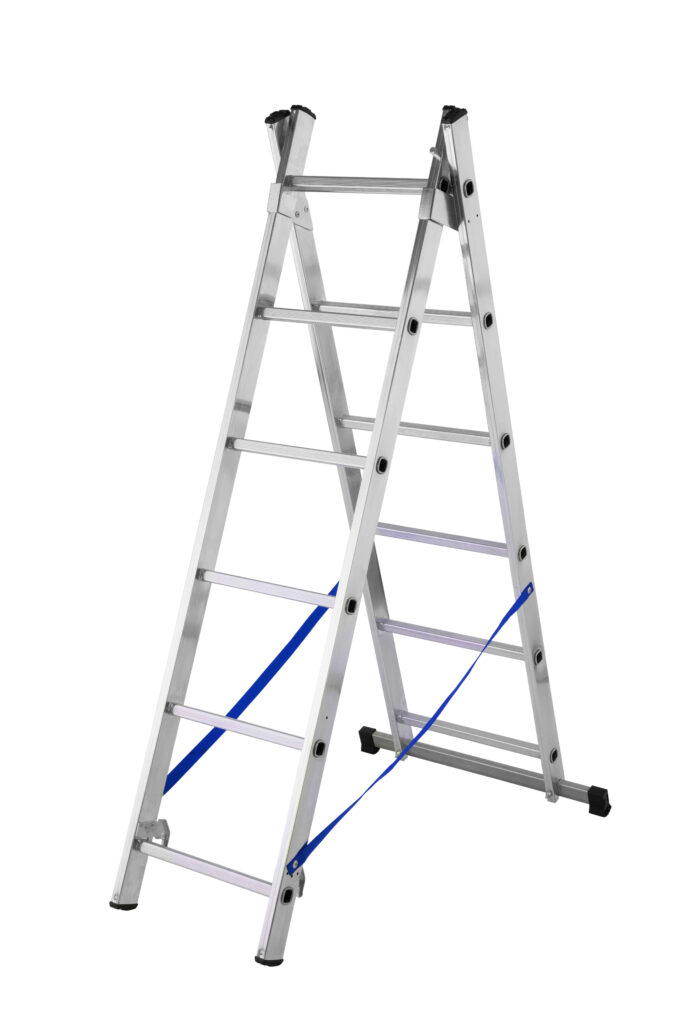

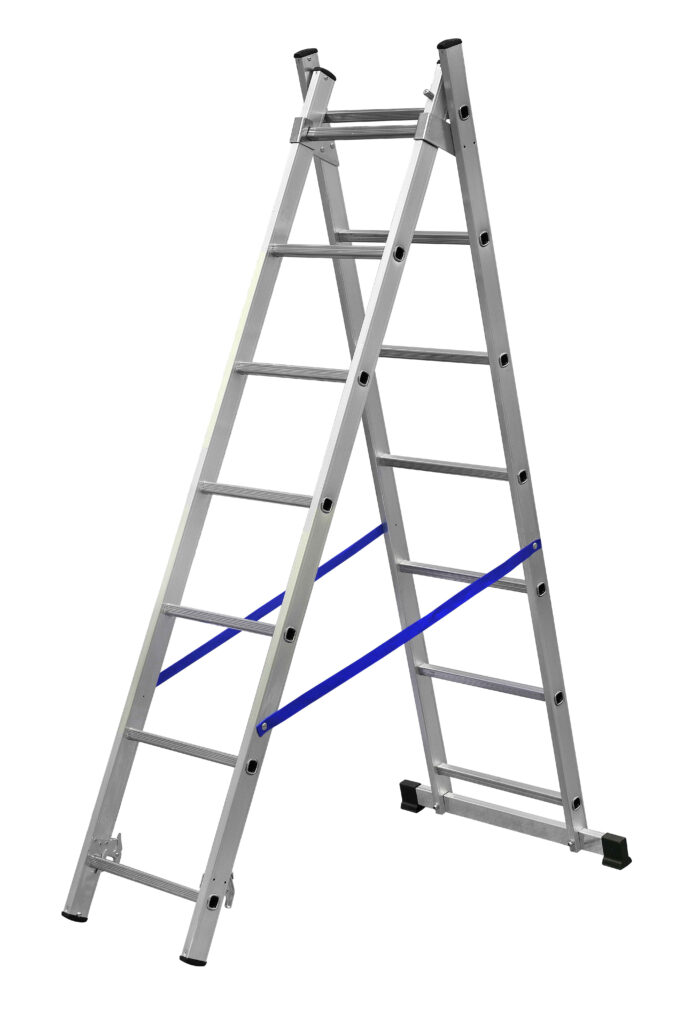

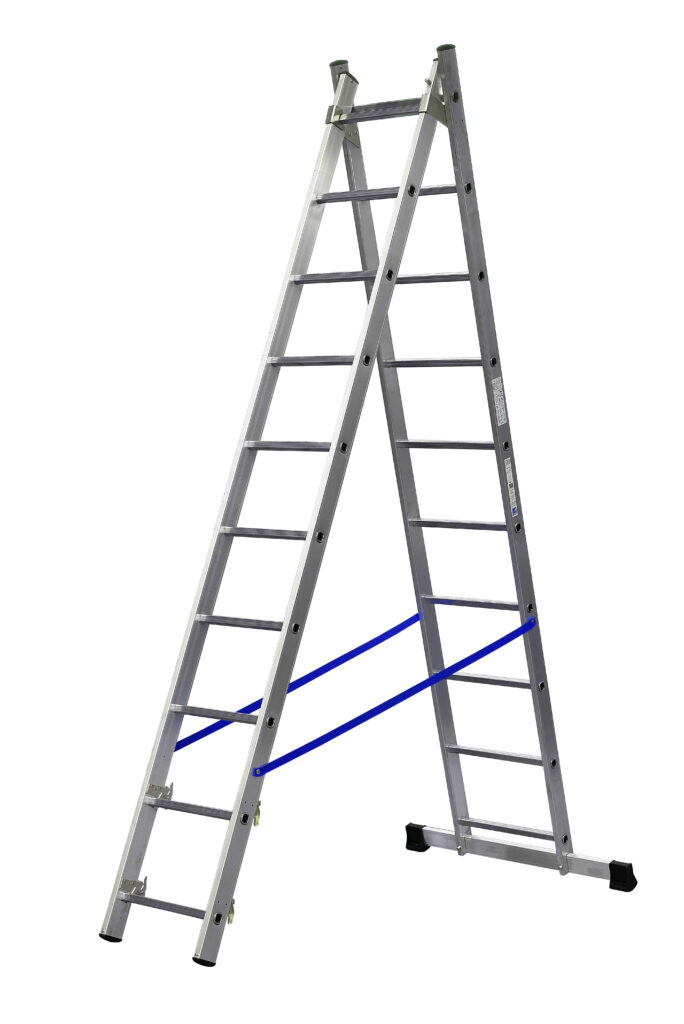

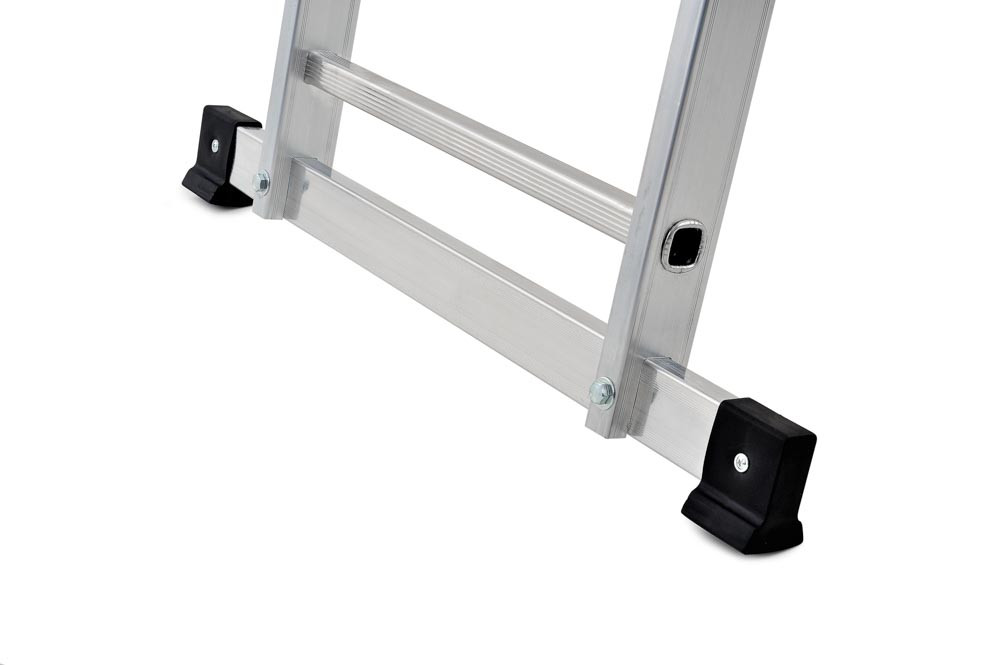

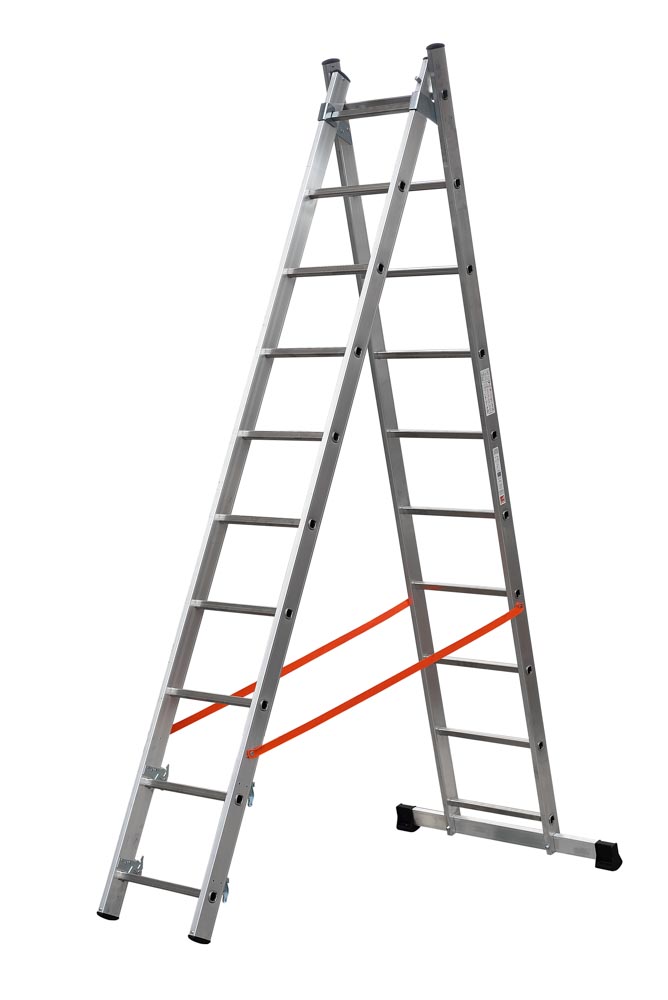

2 sections extending ladder parallel uprights Gierre Modula is equipped with anti-opening rope and a non-slip stabilizer bar.
